Electric gates
Electric gates
Electric gates

Gate Automation System Components

Our systems can be fitted with a number of optional components to increase security and add to the convenience of your life. To help you decide we have listed a number of commonly installed products. If you have any special requirements please let us know, and we can find a solution for you.


If you are looking for intercoms use this link

FAAC Remote

FAAC / Genius / CAME Remote

​

  • Open your gate or garage with a press of a button


  • Upto 50m range. (line of sight).


  • Range can be improved with an external receiver aerial.
    (If it is an issue).


  • Up to 250 unique remotes are typically supported by our systems. Let me know if you need more & I will add a memory module to the control board.


  • We can fit an external receiver to any device that can be operated by a switch, so one unified remote can be used.


  • Standard is two button, with a four button option if required.

GSM Switch

GSM Switch

​

  • No need to hand out remotes for the gate, open the gate with your phone by calling or texting the device phone number, which has its own O2 SIM card & mobile number.


  • Supports 250 to 1000 phone numbers.


  • Programed by text message by a master phone or code.
    Authorised Numbers can be added & be removed by sending the unit a text message.


  • Users simply call the GSM mobile number & the gate will open. (The GSM switch will hangup on call).


  • Access can be remotely granted to by anyone with an authorised phone number.


  • Warning: Does not function if you withhold your phone number! (uses caller id for identification).


  • Requirements:

  • O2 Sim card. We will help you setup an account to manage this. £10 credit usually lasts between 4 to 9 years, depending on the number of program changes that are made over this time. (Device typically sends one text a month to the master phone number which would be its only cost).


  • Mobile phone signal is required!

IMG_3471
IMG_3477
IMG_3488

Gate Activation Doorbell

​

  • Each time the gate is opened the doorbell will ring.


  • System is powered from the control board so no batteries need replacing, installed with a custom 3D printed mounting to keep things tidy.


  • Internal Ringer plugs into an AC socket, it has a 300m range from the gate.

​

​

​

​

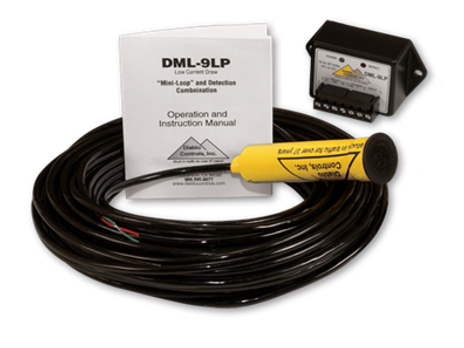

Mini Loop

Vehicle Presence Sensor (Pulse)

​

  • Magnetic detection sensor.  Detects vehicles, and opens gates on approach. (single activation pulse).


  • Minimal labour, only one hole needs digging and cable routing.


  • Can be disabled at night for additional security.

​

Requirements:

  • On tarmac / concrete drives we typically need to hire a floor saw.
    (The cable can fit directly in the slot that is cut providing the neatest finish).

​

​

FAAC Pro Loop

Vehicle Presence Detector (Continuous)

​

  • FAAC ProLoop & Pro loop 2 (Single & Dual channel)


  • Opens gate on vehicle approach.


  • Detect vehicle presence (continuous)


  • Can be used as a safety device to prevent gate closure on vehicles.


  • Labour intensive, a loop of wire must be embedded in the driveway.


  • Can be disabled at night for additional security.


  • Requirements:

  • On tarmac drives we need to hire a Floor Saw.
    (The cable can fit directly in the slot that is cut providing the neatest finish).

Safety edge

​

Safety edge


  • Mandatory with most solid wood gate systems we install for safety compliance. (encoders on the motors are affected by wind loading so cannot be relied upon on solid gates).


  • Resistive safety edge signals the gate system if it collides with a vehicle or person, causing the gate to back off. This prevents crushing hazards. Fail safe state.


  • Variable size and thickness.


  • Enables compliance with BS EN 12453:2001. standard for electric gates


  • We use safety edges by CCE. They are the most reliable as I can assemble them myself, & repair them should they get damaged.

Safety Edge
Pedestrian button

Push Button (Pedestrian access)

​

  • Waterproof push button, used for non secure gates to allow access.


  • Time switch located on the control baord can disable the pedestrian access switch, providing security at night. (we can program this for you).


  • Different finishes are available depending on requirements.


​

​

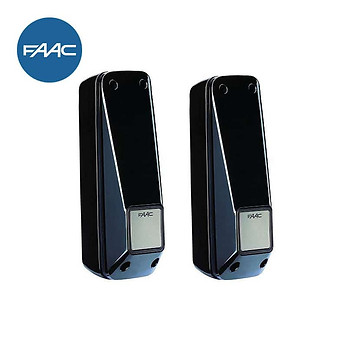

FAAC XP 20 D Photocells

Photocell Pair​


  • Prevents Gates from closing on vehicles. Provided with all systems.


  • Uses an infrared beam to detect obstructions.


  • Directional infrared beam allows for discrete placement.


  • Signals gate to stop & reverse if obstruction detected. Fail safe state.


  • Insect proof. Integrated gaskets keep them out.


  • Enables compliance with BS EN 12453:2001. standard for electric gates.

​

​

PhotoCell

Solar System


  • FAAC 24V E124 control system. (Powersave functions active).
    (included as standard in our automation system quotes).


  • 24v MPPT Solar charge controller.


  • Two 12v deep cycle batteries. Typically 2x 22Ah lead acid.


  • Large Fiberglass battery box.


  • Solar panels & custom mounting solution. (specified to suit requirements).


  • Can be fitted to any standard 24v system we install, where power is an issue.


  • Number of daily operations dependant on solar array size and battery capacity. If high intensity use is required we recommend using the control board 7 day timer to open the gate in the morning & close it in the night.


  • Please keep in mind lead acid batteries have an expected lifespan of around 5 years. Lithium batteries do not work in the cold. (Charger will disconnect to prevent damage).

​

Solar Control system
